Micca OriGen G2 USB Audio DAC and Preamp

The Micca OriGen G2 USB audio DAC and preamplifier is a studio master grade digital audio playback device that supports high resolution PCM audio up to 24-bit/192kHz. Its powerful preamp and headphone amplifier makes the OriGen G2 especially well suited in a compact desktop computer audio system together with powered monitors and headhpones. Use the OriGen G2 to bypass a computer’s sound card and unlock the full sonic potential of your music library.
This page is for the Micca OriGen G2 with C-MEDIA USB interface. For the Micca OriGen+ with VIA USB interface, click HERE

Where to Buy

Buy from Amazon.com

The Micca OriGen G2 USB audio DAC and preamplifier is a studio master grade digital audio playback device that supports high resolution PCM audio up to 24-bit/192kHz. Its powerful preamp and headphone amplifier makes the OriGen G2 especially well suited in a compact desktop computer audio system together with powered monitors and headhpones. Use the OriGen G2 to bypass a computer’s sound card and unlock the full sonic potential of your music library.

Digital Finesse

The digital circuitry of the OriGen G2 consists of a C-MEDIA CM6631A USB 2.0 High Speed 480Mbps audio controller and a Wolfson WM8740 stereo D/A converter. This capable combination provides asynchronous decoding and conversion of PCM audio up to 24-bit/192kHz. Advanced audio stream interface support includes both ASIO and WASAPI Push/Event output modes. Selectable USB or Optical S/PDIF digital input for flexible source connection.

Analog Brawn

The analog section of the OriGen G2 provides switchable line-level or headphone output, using JRC NJM4556 op amps with two output gain levels of 5.3Vrms and 1.6Vrms. The selectable gain design provides excellent drive capability into any downstream amplifiers with enhanced signal strength, low noise, and low interference. The headphone outputs are similarly powerful, with only 0.5 Ohm output impedance and able to drive 16-600 Ohm headphones.

Solid Construction

Starting with a steel tub chassis, the OriGen G2 is capped with an anodized aluminum top plate and finished with a solid machined aluminum volume knob. The TOCOS sealed potentiometer used for volume control offers long operating life and a smooth weighted feel. The all-metal construction makes the OriGen G2 exceptionally durable and helps shield against unwanted interference.

Try the OriGen G2 risk free with your computer and your music library. The OriGen G2 is compatible with Windows, Mac, and Linux computers, as well as tablets and mobile devices that have USB-OTG audio capability. If you are not absolutely delighted with the OriGen G2’s performance, simply return it for a refund.

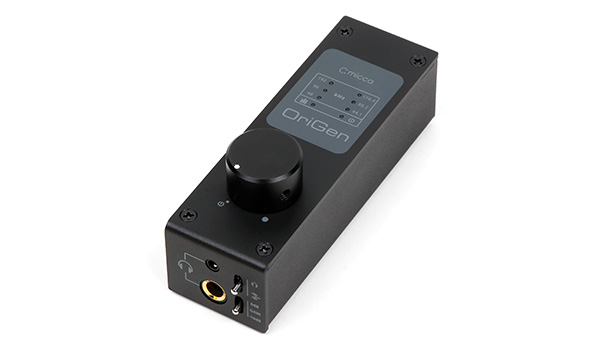

OriGen G2

USB Audio DAC

and Preamp

Rear Jacks

– USB Input

– Optical Input

– Input Selector Switch

– Analog/Optical Output

Front Jacks

– 3.5mm Stereo Jack

– 6.8mm Stereo Jack

– 0dB/-10dB Gain Switch

– Output Selector Switch

Versatile Preamp

Studio quality DAC and volume control for self-powered speakers

Headphone Amp

Powerful enough to drive most full size headphones

Inputs & Outputs

  • Asynchronous USB 2.0 input for use with Windows XP/7/8/8.1/10, and MAC OSX.
  • Optical S/PDIF input supports PCM signals from other audio sources.
  • Front 3.5mm and 1/4” stereo headphone outputs. Powerful built-in headphone amp supports 16-600 Ω headphones.
  • Rear 3.5mm stereo analog line level and combination optical S/PDIF digital output.

Digital Stream Formats

  • PCM audio up to 24-bit/192kHz
  • ASIO and WASAPI Push/Event support

Key Components

  • C-MEDIA CM6631A USB 2.0 High Speed 480Mbps audio controller
  • Wolfson WM8740 Stereo D/A Converter
  • JRC NJM4556 operational amplifier

Ideal For:

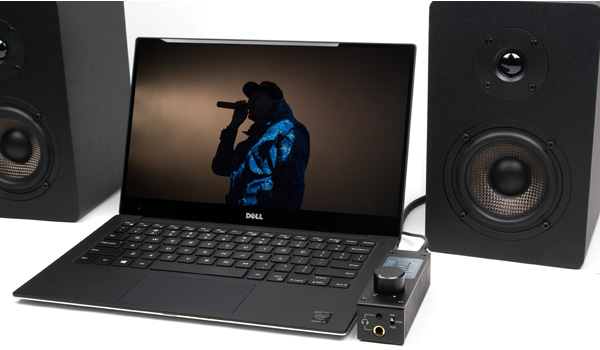

  • Use with the PB42X Powered Monitors for a high quality desktop computer audio system.
  • Provide low noise and high power headphone output for enjoying music on any computer.
General

PCM Formats PCM (44.1/48/88.2/96/176.4/192kHz, 16/24bit)
USB Interface USB 2.0, Asynchronous Transfer Mode
Audio Controller C-MEDIA CM6631A
Digital-to-Analog Converter Wolfson WM8740
Output Op-amp JRC NJM4556
Channel Imbalance < 0.5dB
Optical S/PDIF Format PCM Only
Power Source 5V/500mA
Dimensions 4.6 x 2.0 x 1.9 Inch (116mm x 51mm x 47mm)
Weight 6 Oz (170g)
Line Level Output
Frequency Response 20Hz ~ 20kHz +/- 0.1dB
THD+N < 0.02% (1kHz, A-wt.)
Signal to Noise Ratio > 108dB (1kHz, A-wt.)
Crosstalk < -74dB (1kHz)
Output Voltage 5.3Vrms (Gain: 0dB); 1.6Vrms (Gain: -10dB)
Headphone Output
Frequency Response 20Hz ~ 20kHz +/- 0.1dB
THD+N < 0.02% (1kHz, A-wt.)
Signal to Noise Ratio > 108dB (1kHz, A-wt.)
Crosstalk < -93dB (1kHz)
Output Voltage 5.3Vrms (Gain: 0dB); 1.6Vrms (Gain: -10dB)
Output Current 70mA (Nominal); 100mA (Max)
Output Impedance 0.5 Ω
Load Impedance 16 ~ 600 Ω



What’s Included

  • Micca OriGen G2 unit
  • USB cable
  • 3.5mm to RCA audio cable
  • User’s Manual

User’s Manual:

icon-pdf-small Micca OriGen G2 User’s Manual (opens in a new tab/window)

Drivers:

Micca OriGen G2 Drivers - Windows XP/7/8/8.1/10 - Version 1.00.0006

DownloadWARNING: ONLY FOR Micca OriGen G2, DO NOT USE ON ANY OTHER MODEL!!!

Installation Instructions:

  • Download the ZIP file.
  • Extract the contents of the ZIP file to a temporary folder.
  • Please refer to the User’s Manual for detailed driver installation instructions.
  • Delete the temporary folder when finished.

Relase Notes:

  • Initial Release

Known Issues:

  • None.

Micca OriGen

Windows 10 (1803) Audio Device Settings

The new Windows 10 1803 release changed the way that audio device settings are accessed. If you right click on the speaker icon on the lower right hand corner of the screen and click on “Open Sound Settings”, this brings you to the new Windows 10 style settings menu rather than the older “Control Panel” style settings page. Unfortunately, this page seems to currently have some issues as users report that settings made on this page are not being stored correctly and revert back to the old values. Instead, follow the steps below to access the original “Control Panel” style settings:

  1. Click on the Windows icon on the lower left hand corner of the screen and type “Sound”, then click on the “Sound” icon from the search results.
  2. The menu that pops up is the “Control Panel” style sound settings, and settings made here will be saved without any issues

Posted in: Micca OriGain, Micca OriGen

Micca OriGen+ does not install, not recognized by computer

A small batch of Micca OriGen+ was shipped with defective USB cables. If your Micca OriGen+ does not install correctly or is not detected by the computer this may be caused by a defective USB cable.

The defective USB cable will provide power to the OriGen but will not pass data correctly. When this occurs, the power light on the OriGen+ will turn on in red color instead of blue. When this happens, try a different USB cable to see if this resolves the issue.

If the USB cable you received with the OriGen+ is defective, please contact our support team at support@miccatorn.com to receive a replacement USB cable.

Posted in: Micca OriGen

Micca OriGen/OriGen+ Driver Install – Windows 10

The Micca OriGen and OriGen+ uses a VIA USB interface chip which now enjoys support from Windows 10’s built-in USB Audio 2.0 drivers. For the time being, the installation is not automatic and involves some manual steps. Please follow the steps below to make this installation:

  1. Connect the OriGen to your computer.
  2. Click on the Windows icon on the lower left hand corner and type “Device Manager”, click on the Device Manager in search results. When device manager opens, look for “VIA USB Device” which should be listed with a yellow triangle. Right click on “VIA USB Device” and select “Update Driver”, as shown below.
  3. In the window that opens, select “Browse my computer for driver software”, as shown below:
  4. On the next window, select “Let me pick from a list of available drivers on my computer”, as shown below:
  5. On the next window, under Manufacturer, select “Microsoft”. Under Model, select “USB Audio 2.0”, and click next, as shown below:
  6. A warning will pop up asking you to confirm that you want to use this driver, click “Yes”, as shown below:

That’s it! The OriGen should now work.

If you wish to use the VIA-supplied drivers instead of Windows USB Audio 2.0 drivers, please follow the instructions below:

With more recent releases of Windows 10, the driver installation sequence has changed in a way that was not anticipated in the Micca OriGen driver package. While we work on a driver package update, please observe the following instructions when installing the driver on Windows 10:

  1. Be sure the OriGen is not connected to the computer.
  2. Download the OriGen driver package to your computer’s “Downloads” folder, and extract it.
  3. Inside the driver folder, right-click on “Step-1-Turn-On-Install-Mode” and select Run as administrator. A window will pop up showing execution results – if you see an error that “Secure Boot” has prevented the settings change, you must temporarily disable Secure Boot and execute this step again. Microsoft provides instructions on how to disable Secure Boot in this tutorial: [link to tutorial]. If no errors are displayed, restart your computer when prompted.
  4. Once the computer finishes restarting, Inside the driver folder, double-click on “Step-2-Install-Driver”. Follow the install prompts and on the final screen click No, I will restart my computer later and click Finish.
  5. At this time, connect the OriGen and turn it on.
  6. In the driver folder, double-click on “Step-3-Fix-Driver-Association”, the Device Manager window will open. Expand the Sound, video and game controllers group, there should be a VIA USB Device listed with a triangle exclamation mark.
  7. Right click on the VIA USB Device and select Properties, the pop up box will show the error “Driver is not intended for this platform”.
  8. Click on Update Driver, then click on Browse my computer for driver software. Click on Browse and navigate to the driver folder, and the sub folder “WIN10”, Click Next when ready. The driver will be installed correctly.
  9. Inside the driver folder, right-click on “Step-4-Turn-Off-Install-Mode” and select Run as administrator. Restart your computer when prompted.

The last few steps should look similar to the screen shot below:

Posted in: Micca OriGen

Micca OriGen/OriGen+ Does Not Support DTS or Dolby AC3 Signal

micca-origen-dts-ac3-disableThe Micca OriGen/OriGen+ supports PCM or DSD audio decoding over USB. It does not support decoding of DTS or Dolby AC3 audio streams. Furthermore, it is limited to decoding PCM signals over the optical input since DSD cannot be transmitted over an optical connection due to bandwidth limitations.

When configuring the OriGen/OriGen+ device properties, be sure that “DTS” and “Dolby Digital” checkboxes are unchecked. Similarly, if you are connecting the OriGen/OriGen+ to the optical output on your computer, check that the device properties for the optical output also has the “DTS” and “Dolby Digital” checkboxes blank. This ensures that the computer will perform decoding of DTS and Dolby signals, and output the audio in PCM format.

Posted in: Micca OriGen

Micca OriGen no signal from optical S/PDIF output

The OriGen’s 3.5mm jack also doubles as a optical mini output jack. When it is working, the jack will glow red indicating that a signal is present. While this output will work for most situations, there are three known limitation with the optical S/PDIF output where it will not produce any output:

  • If the PCM signal is 32-bit 192kHz as this exceeds optical specifications. The limit is 24-bit 192kHz.
  • If the output mode is ASIO. The VIA USB chip only supports S/PDIF output when the data stream is Direct Sound or WASAPI.
  • When used with certain Android phones over USB OTG, since certain Android implementations lack the necessary endpoint support for S/PDIF output.

Posted in: Micca OriGen
