Micca M-8S/M-6S In-Wall Speaker

The Micca Media Series of in-wall and in-ceiling speakers have been designed for optimal performance in a wide variety of home entertainment applications, from providing relaxed background music, to a high impact 7-channel home theater system. Built with high quality components and rigorously tested design, Media Series speakers deliver exceptional value and are well reviewed by owners and critics.

Value and Performance

Media Series speakers are sold factory-direct, a highly efficient business model that allow more of the cost to go into component quality and design tuning. Each speaker is built with high grade drivers and crossovers. As a result, Micca Media Series speakers are exceptionally well performing as well as affordable.

Application and Usage

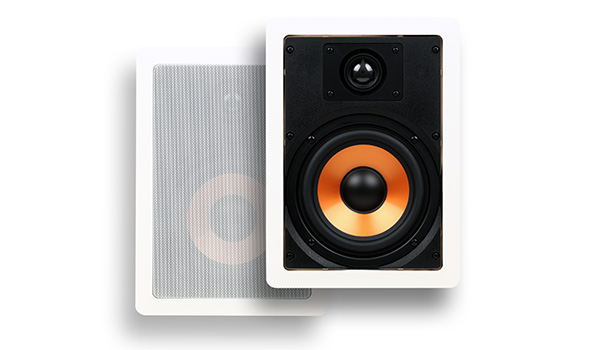

The M-8S and M-6S utilize a classic 2-way design in a rectangular form factor. They are well suited to a variety applications and mounting locations depending on need:

  • In-wall as front or center speakers in a home theater
  • In-wall as surround speakers in a home theater
  • In-wall as background music speakers

Selection Considerations

The M-8S and M-6S shares common components and design with other Media Series in-wall/in-ceiling speakers, making for a perfect tonal match when mixed and matched. For a given installation location, it is always recommended to install the largest Media Series speaker model that will fit. Doing so provides the fullest sound and best performance at all playback levels. In locations where the larger M-8S will not fit, the smaller M-6S can be used instead.

Dynamic and Balanced

The M-8S is a 2-way in-wall speaker with a high excursion 8″ poly woofer and a 1″ soft dome tweeter. This combination provides the utmost flexibility in terms of configuration and suitability to different types of audio tastes. In addition to smooth and natural vocals, the 8″ woofer is capable of robust bass output, allowing the M-8S to be used without the need for a subwoofer in many applications. When a subwoofer is present, the bass capabilities of the M-8S ensure seamless integration at frequencies that smaller woofers simply can’t reach.

The M-6S is shares the same design and features as the M-8S, but with a 6.5″ poly woofer instead for an overall more compact speaker.

Imaging and Clarity

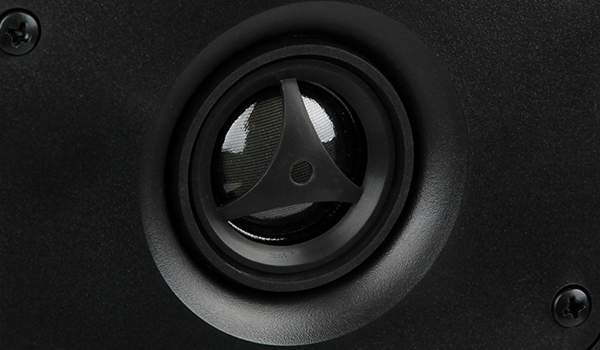

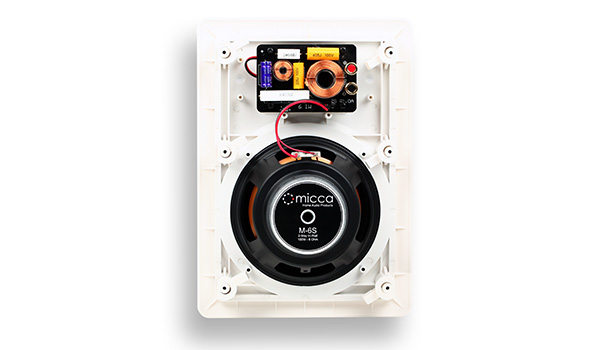

The 1″ soft dome tweeter provides abundant detail and clarity, generating solid and focused imaging for all sound sources in a spacious sound stage. Designed for a broadened listening sweet spot, the tweeter employs a diffuser to assist off-axis response as well as a pivoting mechanism to achieve proper aiming. Perfect integration between the tweeter and woofer is achieved through a 12dB crossover network with a compensation network. Once installed and setup, the M-8S and M-6S project a realistic sound stage with excellent resolution.

M-8S Specifications:

  • Woofer: 8″ Mica-Filled Polypropylene Cone with Butyl Rubber Surround
  • Tweeter: 1″ Pivoting Silk Dome, Ferrofluid Cooled
  • Crossover: 12dB/Octave
  • Frequency Response: 40Hz-20kHz
  • Impedance: 8 Ohms
  • Sensitivity: 90dB 1W/1M
  • Power Handling: 100 Watts (Each)
  • Outer Dimension: 10″ (W) x 14.13″ (H)
  • Cutout Dimension: 8.75″ (W) x 12.75″ (H)
  • Mounting Depth: 3.6″

M-6S Specifications:

  • Woofer: 6.5″ Mica-Filled Polypropylene Cone with Butyl Rubber Surround
  • Tweeter: 1″ Pivoting Silk Dome, Ferrofluid Cooled
  • Crossover: 12dB/Octave
  • Frequency Response: 50Hz-20kHz
  • Impedance: 8 Ohms
  • Sensitivity: 87dB 1W/1M
  • Power Handling: 80 Watts (Each)
  • Outer Dimension: 8.6″ (W) x 12″ (H)
  • Cutout Dimension: 7.5″ (W) x 10.75″ (H)
  • Mounting Depth: 3″

User’s Manual:

icon-pdf-small Micca M-8S M-6S User’s Manual (opens in a new tab/window)
